Color filter & Micro lens
We provide production services for 200mm Color Filter and Micro lens, along with "customer - exclusive" process development.
The integration of color filter and microlens significantly enhances visible light collection efficiency, boosts photoelectric conversion efficiency, and minimizes light signal crosstalk between adjacent pixels. We offer full-flow service capabilities, covering design, processing, inspection, and other processes, to deliver customized solutions for our customers .
The integration of color filter and microlens significantly enhances visible light collection efficiency, boosts photoelectric conversion efficiency, and minimizes light signal crosstalk between adjacent pixels. We offer full-flow service capabilities, covering design, processing, inspection, and other processes, to deliver customized solutions for our customers .
Product details
Parameters of Color Filter & Micro Lens Foundry Products
RGB process capability
|
RGB process capability |
||||
|
Parameter |
Pixel Size |
Thickness |
||
|
Min |
Max |
Min |
Max |
|
|
Green |
1.1μm |
Customer requirements |
0.60μm |
1.2μm |
|
Red |
1.1μm |
Customer requirements |
0.65μm |
1.2μm |
|
Blue |
1.1μm |
Customer requirements |
0.65μm |
1.2μm |
|
RGB parameter capability can be customized according to customer requirements |
||||

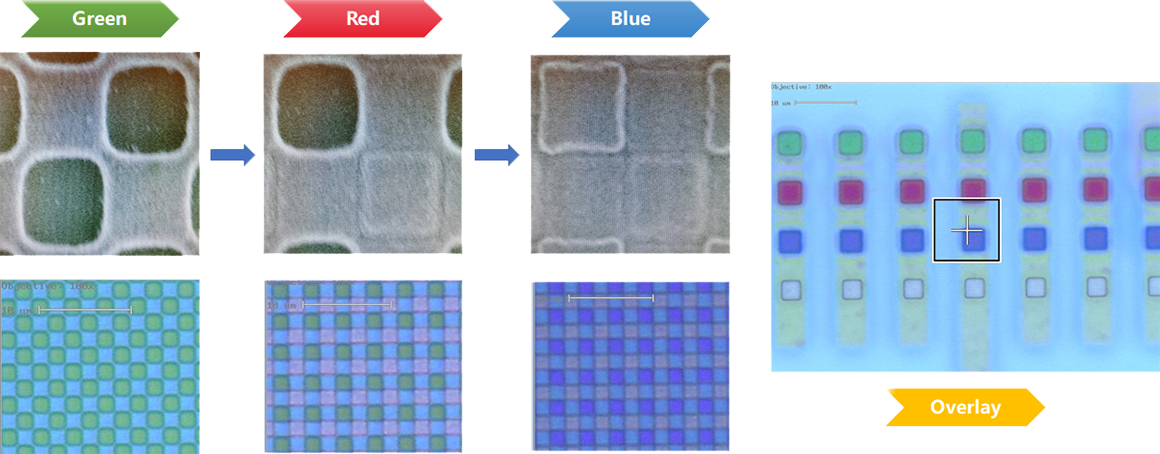

YCMEC - Imaging results of mass-produced RGB products under CDSEM and optical microscope (overlay ≤ 0.1um)

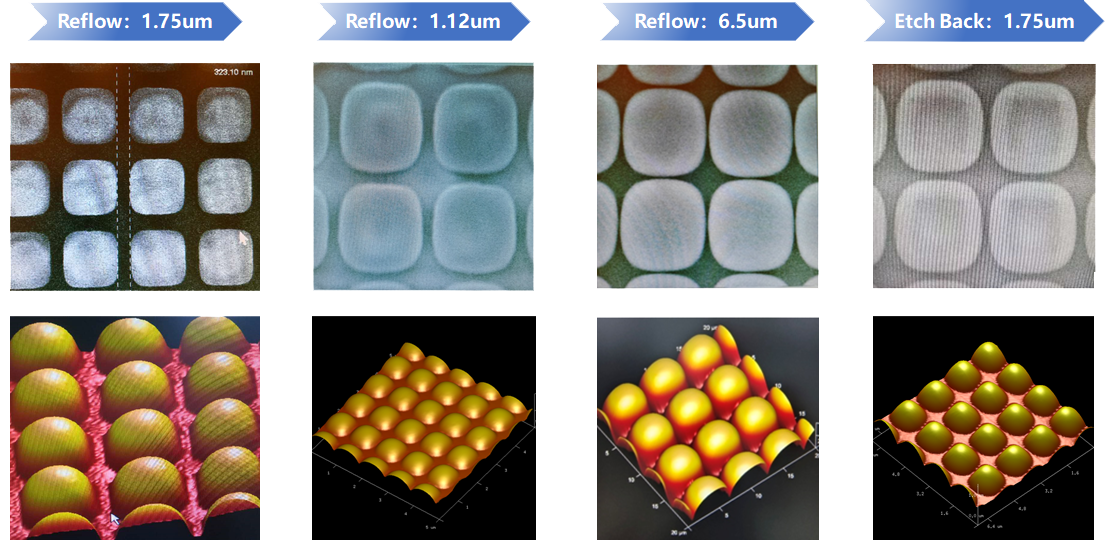

Micro lens Process capability
|
ML Process capability |
||||
|
Parameter |
Pixel Size |
Thickness |
||
|
Min |
Max |
Min |
Max |
|
|
ML |
1.0μm |
Customer requirements |
0.30μm |
6.0μm |
|
The pixel size and thickness of Micro Lens can also be customized according to customer requirements |
||||
